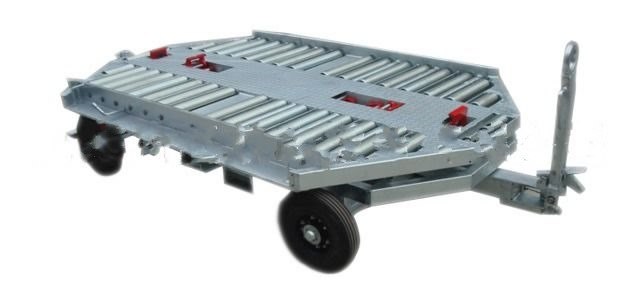

Overview: Adopt the overseas technology and domestic airport application experience, with the elaborate design,it is reliable and durable,with reasonable layout and good shape.
Rotary table: Welded of heavy duty channel steel and thick steel, 360 rotation,it can be fixed at the position of 90 through the footboard.
Roller: The roller is made of seamless steel pipes,connected by bearings at two ends,due to galvanizing treatment,the container can move smoothly on its surface.
Steering mechanism: With steering joints and lateral drawbar for the change of direction for front wheel, the vehicle can turn with easily and flexibly.
Rear tow-hook: Operated conveniently, with self-locking device, there is no throw-off-hook caused by the vibration during travel.
Tyre: Adopt domestic renowned rubber solid tyre, the loading capacity is higher with better wearing resistance and longer long service life. The lateral side of the tyre is secured with anti-collision steel ring, which can better protect the tyre.
Braking mechanism: Connected by flexible shaft for brake, the brake system can be activated once erect or lay down the drawbar.
Surface treatment: Generally, the unichrome process is applicable after shot blasting integrally, also made-to-measure according to customer requirements is available.
