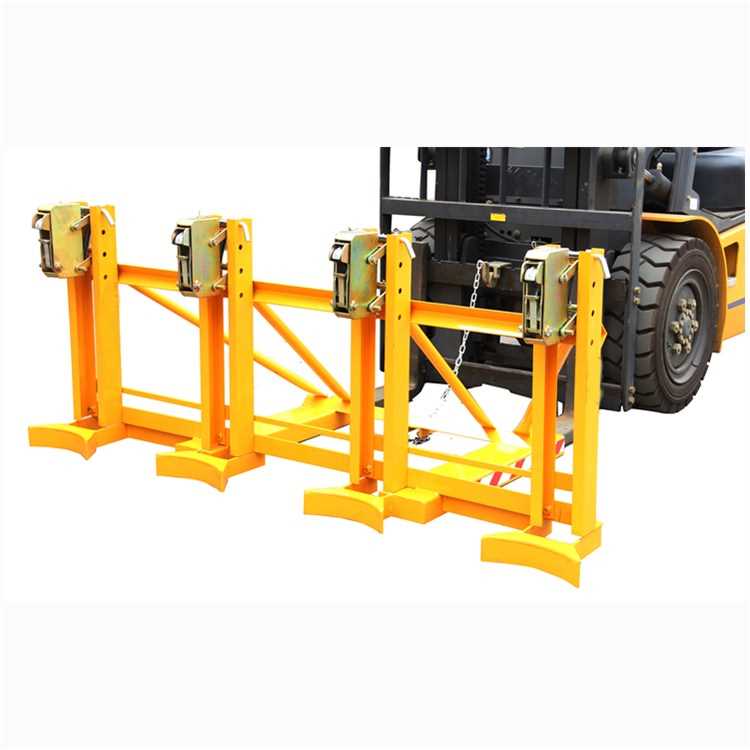

Single-Grip 4 Drums Grab DG1440A
Feature of 4 Drum Lifters / 4 Drum Grabber DG1440A:
- Grab, lift, move and place drums without the operator leaving driver's seat;
- Completely Mechanical and Automatic drum grab requires no hydraulic or electrical connections;
- Automatic clamping mechanism for handling steel and plastic drums in high volume applications
- Carriage mounted models are available to mount directly on the carriage of most lift trucks for tight aisle applications;

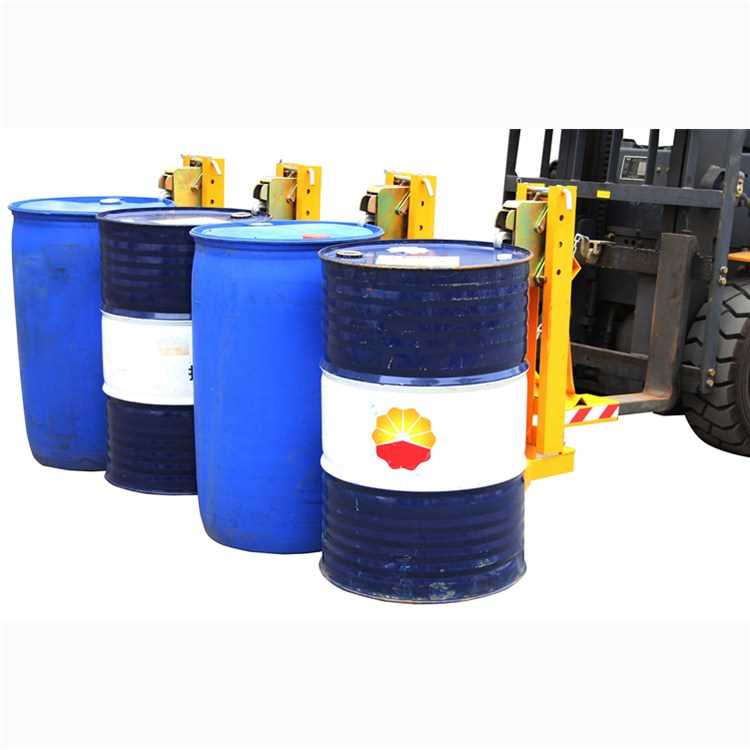

- Can handle 1,2,3 or 4 drums simultaneously;
- Totally enclosed fork pockets with attached safety chain and cam lock secures the attachment to the lift truck.
Model: DG1440A
Load Capacity: 360 Kgs X 4
Net Weight: 126 kgs

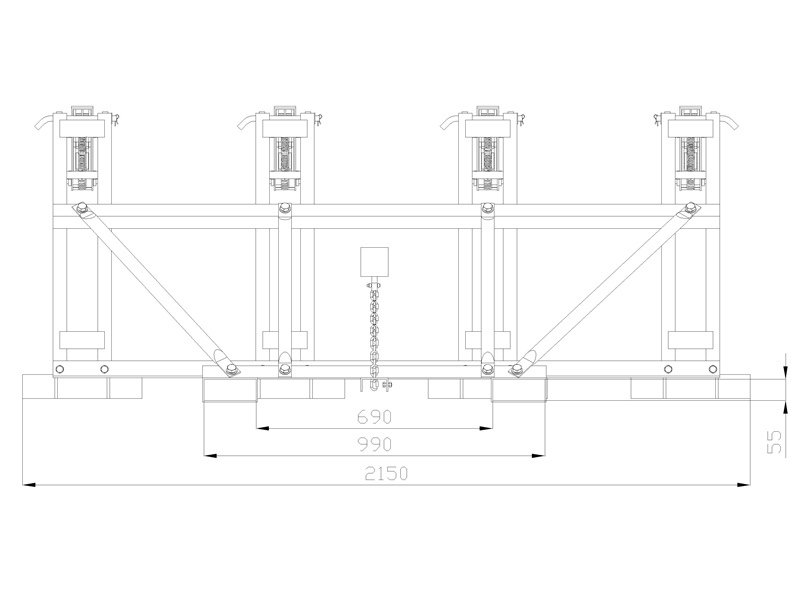

Outline Dimension: 2040*1080*850mm

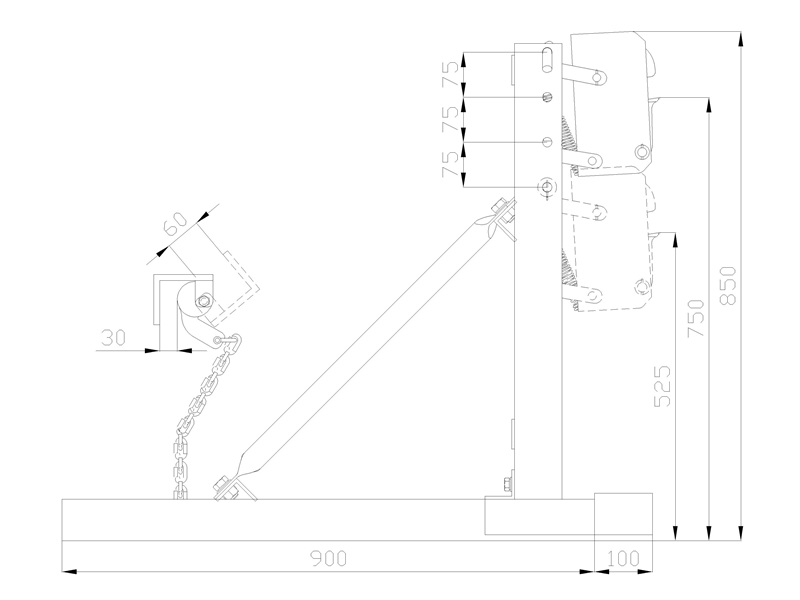

Eagle-gripper Adjustable Height: 525-750mm
Single Fork Sleeve Size: 150*55mm
Outer Width of Double Fork Sleeve: 990mm
Fork Sleeve Length: 900mm
