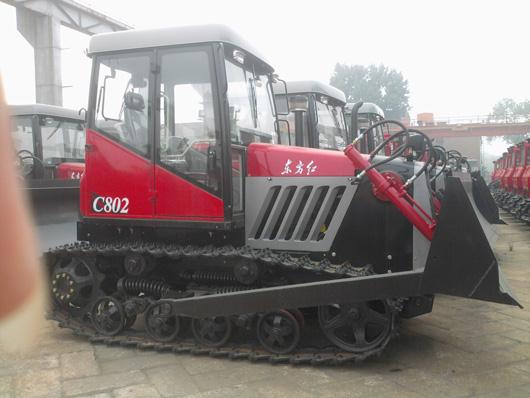

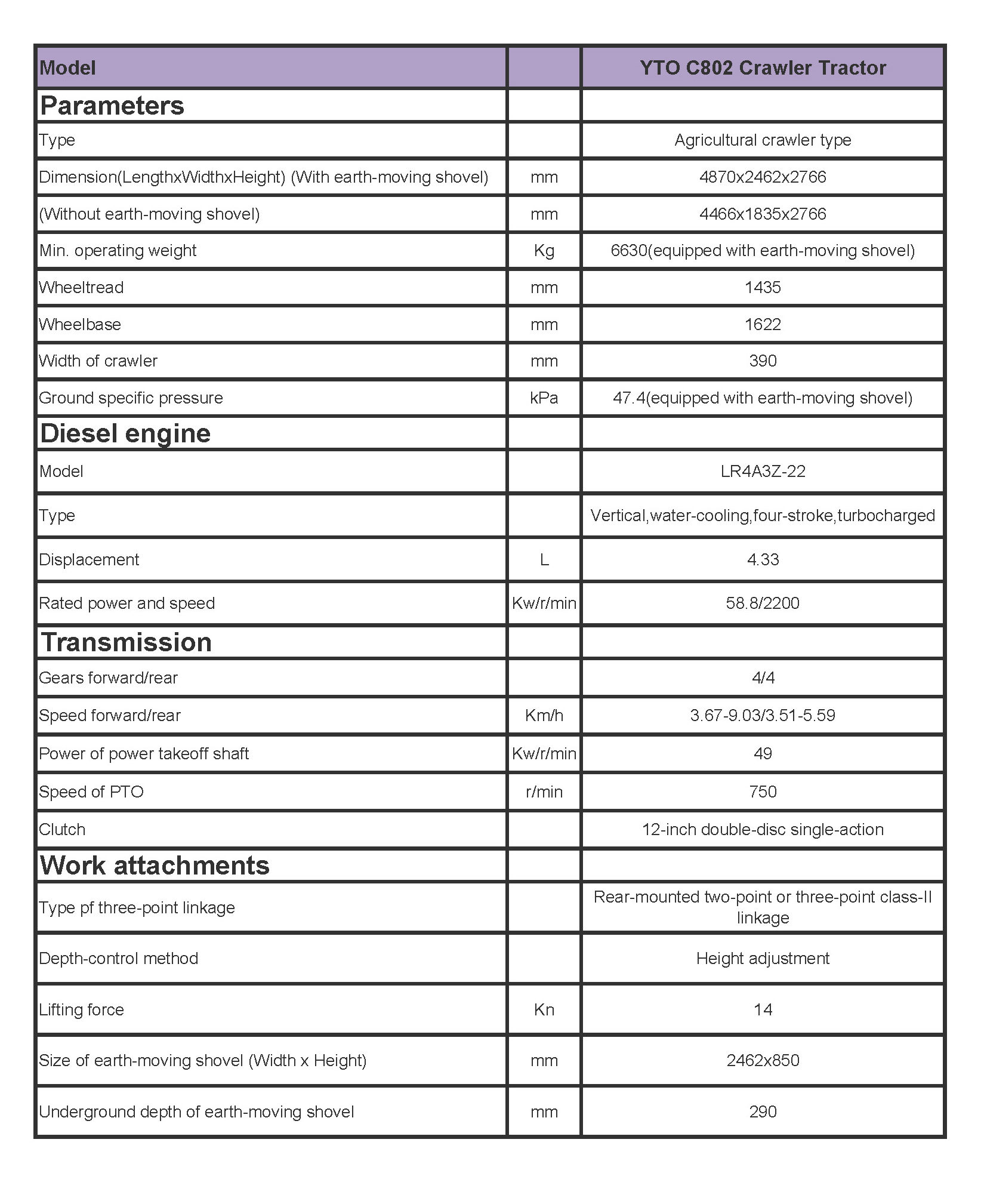

|YTO C802 Crawler Tractor|
|Type||Agricultural crawler type|
|Dimension(LengthxWidthxHeight) (With earth-moving shovel)||mm||4870x2462x2766|
|(Without earth-moving shovel)||mm||4466x1835x2766|
|Min. operating weight||Kg||6630(equipped with earth-moving shovel)|
|Width of crawler||mm||390|
|Ground specific pressure||kPa||47.4(equipped with earth-moving shovel)|
|Rated power and speed||Kw/r/min||58.8/2200|
|Power of power takeoff shaft||Kw/r/min||49|
|Speed of PTO||r/min||750|
|Clutch||12-inch double-disc single-action|
|Type pf three-point linkage||Rear-mounted two-point or three-point class-II linkage|
|Depth-control method||Height adjustment|
|Size of earth-moving shovel (Width x Height)||mm||2462x850|
|Underground depth of earth-moving shovel||mm||290|
1. Tractor with new apperance,which can be widely used in agricultural land operations and earth-moving operation.
2. Dry-type double-disc single-action main clutch,which is easy to operate and has long service life.
3. 4+2 transmission equipped with sliding gear for shifting operation,which has reliable performance..
4. Multi-disc dry-type steering clutch,and floating-type belt brake which enables reliable braking operation.
5. Simply-supported beam stucture for final drive,which has the advantages including high supporting strength and high reliability.
6. Power-assisted hydraulic steering system,which will reduce the labor intensity of operator.
7. Wide crawler available for works on low and wet land,and rubber crawler available for increasing the trafficability.
