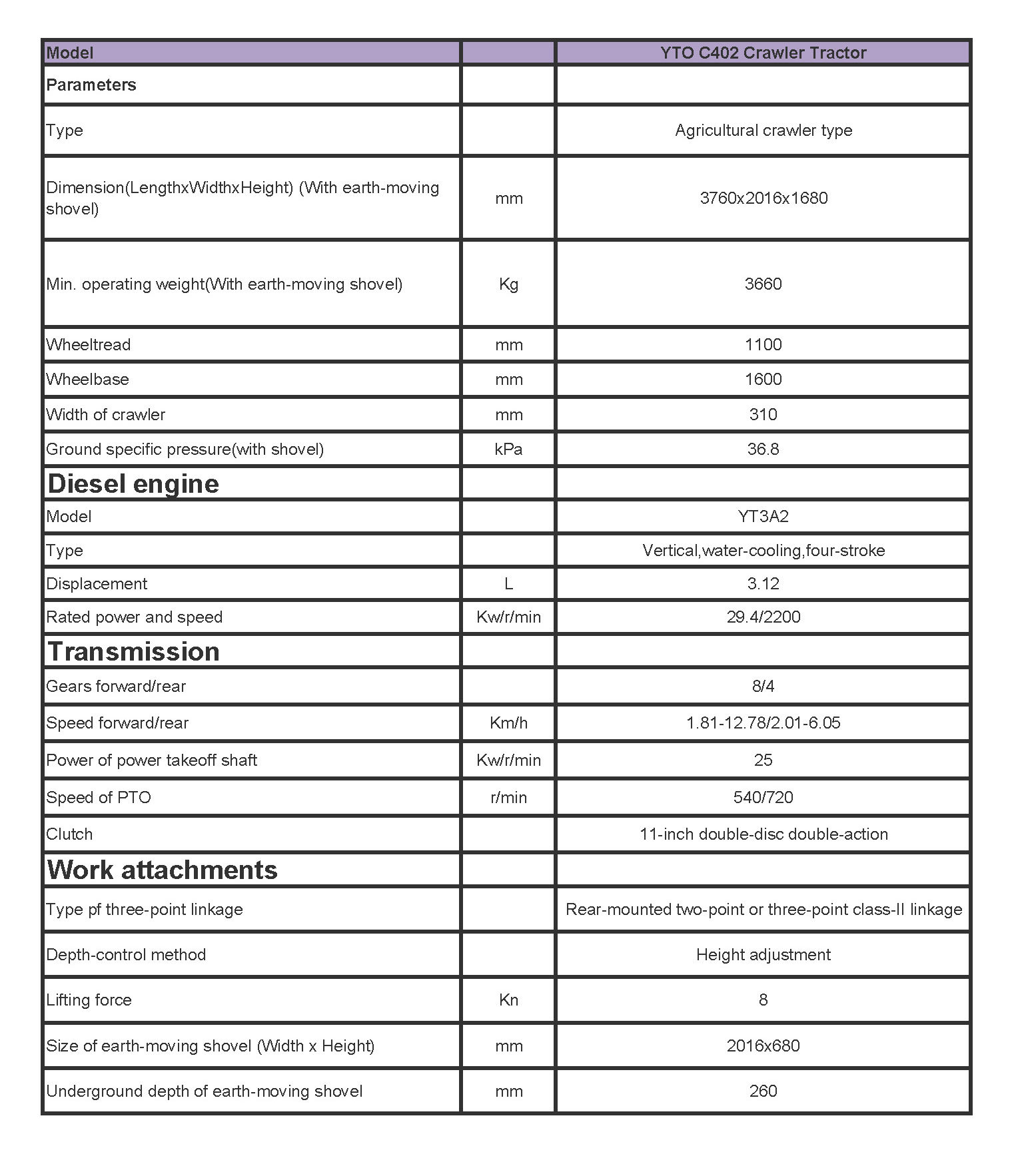

|YTO C402 Crawler Tractor|
|Type||Agricultural crawler type|
|Dimension(LengthxWidthxHeight) (With earth-moving shovel)||mm||3760x2016x1680|
|Min. operating weight(With earth-moving shovel)||Kg||3660|
|Width of crawler||mm||310|
|Ground specific pressure(with shovel)||kPa||36.8|
|Rated power and speed||Kw/r/min||29.4/2200|
|Power of power takeoff shaft||Kw/r/min||25|
|Speed of PTO||r/min||540/720|
|Clutch||11-inch double-disc double-action|
|Type pf three-point linkage||Rear-mounted two-point or three-point class-II linkage|
|Depth-control method||Height adjustment|
|Size of earth-moving shovel (Width x Height)||mm||2016x680|
|Underground depth of earth-moving shovel||mm||260|
1. Suitable for operations in agricultural land and orchard, and small-quantity earth-moving operation as well.
2. Dry-type double-disc disc-spring-compressed double-action main clutch, which is easy to operate.
3. Transmission composed of engagement sleeve based gear shifting mechanism (2+1)x4,which has a lot of gears,ans is easy to control and suitable for various operations.
4. Multi-disc dry-type steering clutch of which the friction discs are made of new material and have long service life,and floating-type belt brake which enables reliable braking operation.
5. Semi-steel suspension system,which increases the earth-moving performance.
