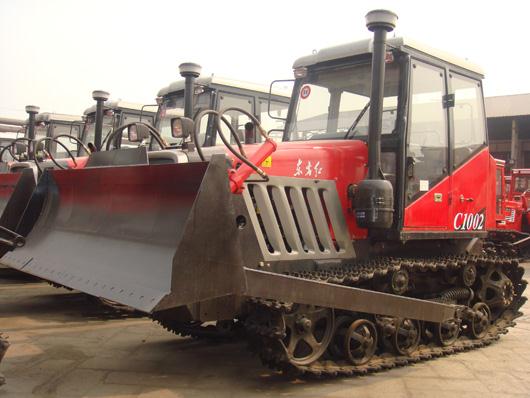

|YTO C1002 Crawler Tractor|
|Type||Agricultural crawler type|
|Dimension(LengthxWidthxHeight) (With earth-moving shovel)||mm||5367x2462x2910|
|Min. operating weight (With earth-moving shovel)||Kg||7300|
|Width of crawler||mm||390|
|Ground specific pressure||kPa||47.7(equipped with earth-moving shovel)|
|Rated power and speed||Kw/r/min||73.5/2100|
|Power of power takeoff shaft||Kw/r/min||62|
|Speed of PTO||r/min||540/1000|
|Clutch||14-inch double-disc single-action|
|Type pf three-point linkage||Rear-mounted two-point or three-point class-II linkage|
|Depth-control method||Height adjustment|
|Size of earth-moving shovel (Width x Height)||mm||2462x850|
|Underground depth of earth-moving shovel||mm||330
|Underground depth of earth-moving shovel||mm||290|
1. Tractor with optimized design and new appearance,which is mainly used for plowing and harrowing operations and is also suitable for earth-moving operation.
2. Dry-type double-disc disc-spring-compressed,10-inch main clutch,which is equipped with damping spring and has long service life.
3. 6+2 transmission equipped with engagement sleeve for shifting operation,which has reliable performance and reduces the force required to operate it.
4. Multiple-disc dry-type steering clutch of which the friction discs are made of new material and have long service life,and floating-type belt brake which enables reliable braking operation.
5. Optimally-arranged control mechanism,power-assisted hydraulic steering system,and self-lubricating shaft sleeve,which can reduce the operating force and maintenance points.
6. Fully-enclosed cab,which can be equipped with air conditioner at the request of customer.
7. Rubber crawler available as an option for increasing the trafficability.
