 YTO spare parts
YTO Singapore

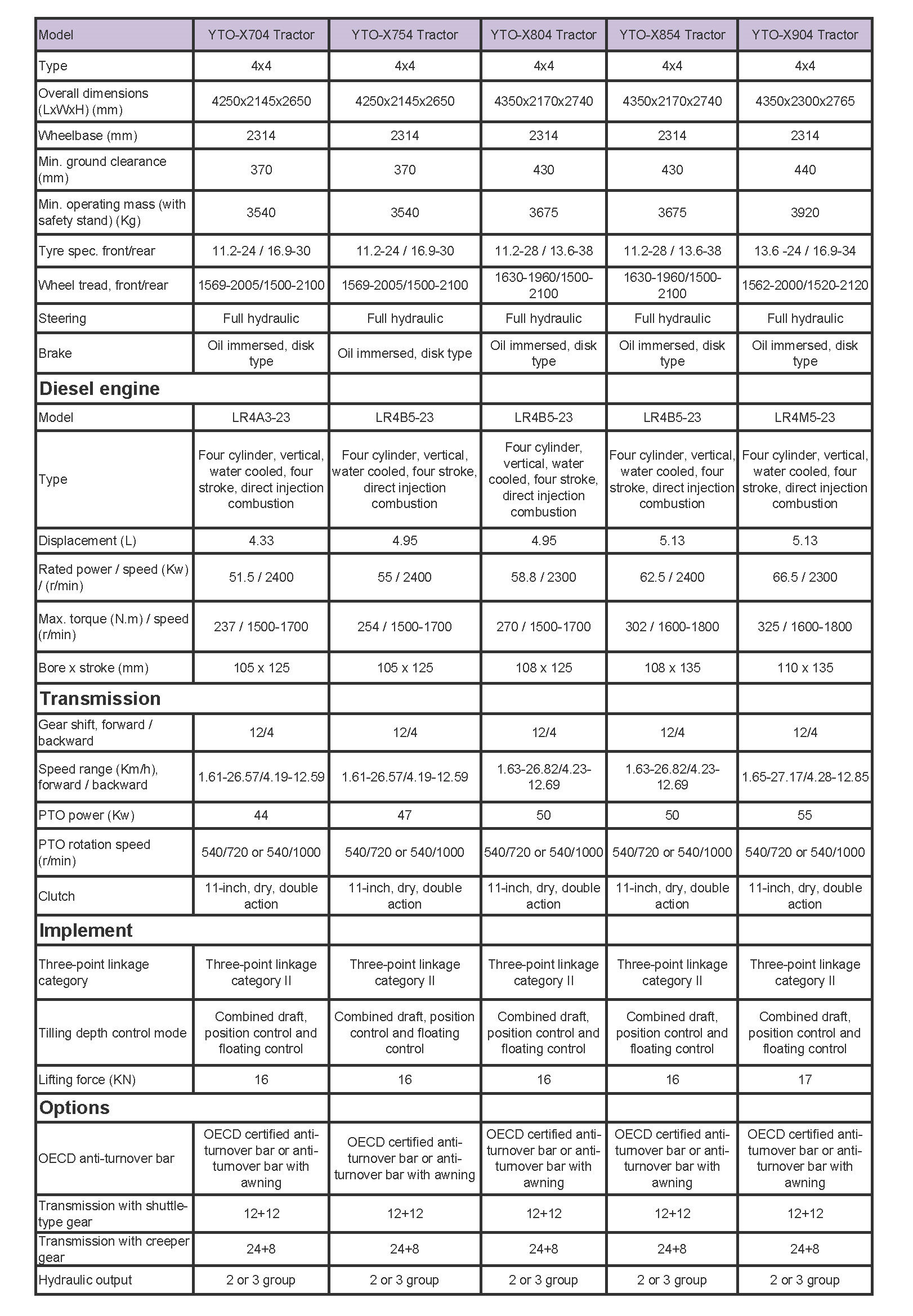

Model
YTO-X704 Tractor YTO-X754 Tractor YTO-X804 Tractor YTO-X854 Tractor YTO-X904 Tractor
Type 4x4 4x4 4x4 4x4 4x4
Overall dimensions (LxWxH) (mm) 4250x2145x2650 4250x2145x2650 4350x2170x2740 4350x2170x2740 4350x2300x2765
Wheelbase (mm) 2314 2314 2314 2314 2314
Min. ground clearance (mm) 370 370 430 430 440
Min. operating mass (with safety stand) (Kg) 3540 3540 3675 3675 3920
Tyre spec. front/rear 11.2-24 / 16.9-30 11.2-24 / 16.9-30 11.2-28 / 13.6-38 11.2-28 / 13.6-38 13.6 -24 / 16.9-34
Wheel tread, front/rear 1569-2005/1500-2100 1569-2005/1500-2100 1630-1960/1500-2100 1630-1960/1500-2100 1562-2000/1520-2120
Steering Full hydraulic Full hydraulic Full hydraulic Full hydraulic Full hydraulic
Brake Oil immersed, disk type Oil immersed, disk type Oil immersed, disk type Oil immersed, disk type Oil immersed, disk type
Diesel engine
Model LR4A3-23 LR4B5-23 LR4B5-23 LR4B5-23 LR4M5-23
Type Four cylinder, vertical, water cooled, four stroke, direct injection combustion Four cylinder, vertical, water cooled, four stroke, direct injection combustion Four cylinder, vertical, water cooled, four stroke, direct injection combustion Four cylinder, vertical, water cooled, four stroke, direct injection combustion Four cylinder, vertical, water cooled, four stroke, direct injection combustion
Displacement (L) 4.33 4.95 4.95 5.13 5.13
Rated power / speed (Kw) / (r/min) 51.5 / 2400 55 / 2400 58.8 / 2300 62.5 / 2400 66.5 / 2300
Max. torque (N.m) / speed (r/min) 237 / 1500-1700 254 / 1500-1700 270 / 1500-1700 302 / 1600-1800 325 / 1600-1800
Bore x stroke (mm) 105 x 125 105 x 125 108 x 125 108 x 135 110 x 135
Transmission
Gear shift, forward / backward 12/4 12/4 12/4 12/4 12/4
Speed range (Km/h), forward / backward 1.61-26.57/4.19-12.59 1.61-26.57/4.19-12.59 1.63-26.82/4.23-12.69 1.63-26.82/4.23-12.69 1.65-27.17/4.28-12.85
PTO power (Kw) 44 47 50 50 55
PTO rotation speed (r/min) 540/720 or 540/1000 540/720 or 540/1000 540/720 or 540/1000 540/720 or 540/1000 540/720 or 540/1000
Clutch 11-inch, dry, double action 11-inch, dry, double action 11-inch, dry, double action 11-inch, dry, double action 11-inch, dry, double action
Implement
Three-point linkage category Three-point linkage category II Three-point linkage category II Three-point linkage category II Three-point linkage category II Three-point linkage category II
Tilling depth control mode Combined draft, position control and floating control Combined draft, position control and floating control Combined draft, position control and floating control Combined draft, position control and floating control Combined draft, position control and floating control
Lifting force (KN) 16 16 16 16 17
Options
OECD anti-turnover bar OECD certified anti-turnover bar or anti-turnover bar with awning OECD certified anti-turnover bar or anti-turnover bar with awning OECD certified anti-turnover bar or anti-turnover bar with awning OECD certified anti-turnover bar or anti-turnover bar with awning OECD certified anti-turnover bar or anti-turnover bar with awning
Transmission with shuttle-type gear 12+12 12+12 12+12 12+12 12+12
Transmission with creeper gear 24+8 24+8 24+8 24+8 24+8
Hydraulic output 2 or 3 group 2 or 3 group 2 or 3 group 2 or 3 group 2 or 3 group

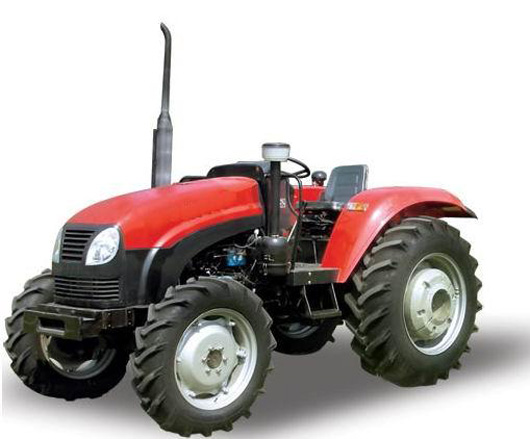

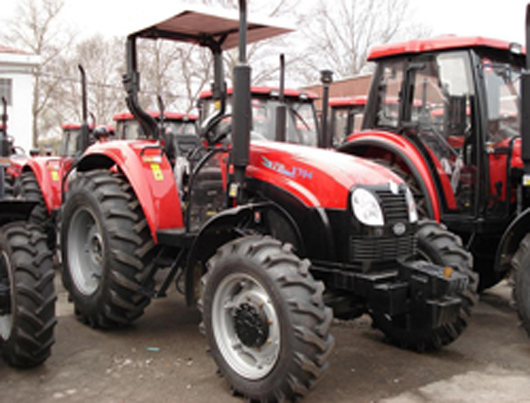

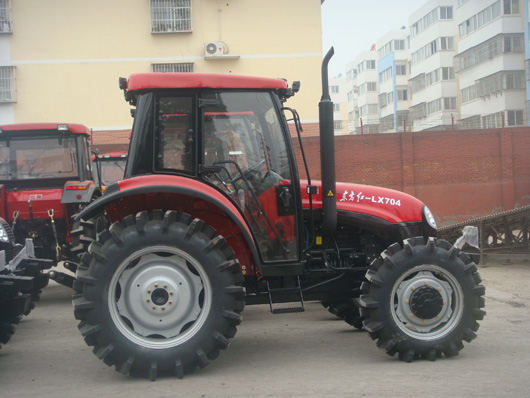

YTO 70hp to 90hp 4WD Wheeled Tractor

The YTO X704/X754/X804/X854/X904 Wheeled Tractor is developed on the basis of the Italian wheeled tractor chassis technology, adopting the British technology-based 4-cylinder turbo-charged engine. The machine body has a streamline configuration. The tractor has low specific fuel consumption and desirable energy efficiency. It has multiple gears and a wide speed range. Besides, it is flexible in steering and easy to operate.


Model:YTO X704/X754/X804/X854/X904 Wheeled Tractor
Engine rated power:51.5kw/55kw/58.8kw/62.5kw/66.5kw
Engine brand: YTO
Engine:LR4A3-23/LR4B5-23/LR4B5-23/LR4M5-23/LR4M5-23
Driving type: 4WD
YTO 70hp to 90hp 4WD Wheeled Tractor
