 YTO spare parts
YTO Singapore

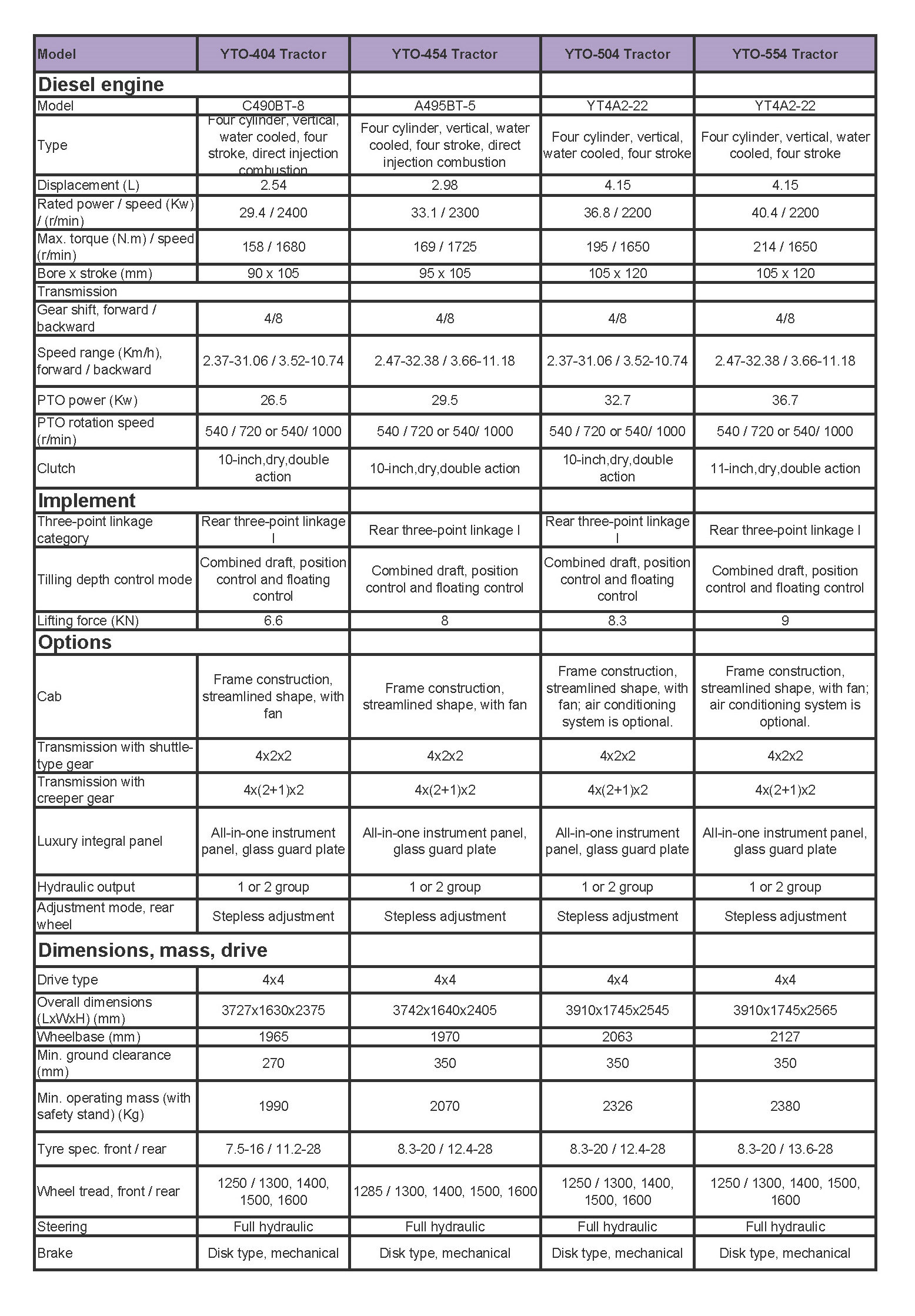

Model
YTO-404 Tractor YTO-454 Tractor YTO-504 Tractor YTO-554 Tractor
Diesel engine
Model C490BT-8 A495BT-5 YT4A2-22 YT4A2-22
Type Four cylinder, vertical, water cooled, four stroke, direct injection combustion Four cylinder, vertical, water cooled, four stroke, direct injection combustion Four cylinder, vertical, water cooled, four stroke Four cylinder, vertical, water cooled, four stroke
Displacement (L) 2.54 2.98 4.15 4.15
Rated power / speed (Kw) / (r/min) 29.4 / 2400 33.1 / 2300 36.8 / 2200 40.4 / 2200
Max. torque (N.m) / speed (r/min) 158 / 1680 169 / 1725 195 / 1650 214 / 1650
Bore x stroke (mm) 90 x 105 95 x 105 105 x 120 105 x 120
Transmission
Gear shift, forward / backward 4/8 4/8 4/8 4/8
Speed range (Km/h), forward / backward 2.37-31.06 / 3.52-10.74 2.47-32.38 / 3.66-11.18 2.37-31.06 / 3.52-10.74 2.47-32.38 / 3.66-11.18
PTO power (Kw) 26.5 29.5 32.7 36.7
PTO rotation speed (r/min) 540 / 720 or 540/ 1000 540 / 720 or 540/ 1000 540 / 720 or 540/ 1000 540 / 720 or 540/ 1000
Clutch 10-inch,dry,double action 10-inch,dry,double action 10-inch,dry,double action 11-inch,dry,double action
Implement
Three-point linkage category Rear three-point linkage I Rear three-point linkage I Rear three-point linkage I Rear three-point linkage I
Tilling depth control mode Combined draft, position control and floating control Combined draft, position control and floating control Combined draft, position control and floating control Combined draft, position control and floating control
Lifting force (KN) 6.6 8 8.3 9
Options
Cab Frame construction, streamlined shape, with fan Frame construction, streamlined shape, with fan Frame construction, streamlined shape, with fan; air conditioning system is optional. Frame construction, streamlined shape, with fan; air conditioning system is optional.
Transmission with shuttle-type gear 4x2x2 4x2x2 4x2x2 4x2x2
Transmission with creeper gear 4x(2+1)x2 4x(2+1)x2 4x(2+1)x2 4x(2+1)x2
Luxury integral panel All-in-one instrument panel, glass guard plate All-in-one instrument panel, glass guard plate All-in-one instrument panel, glass guard plate All-in-one instrument panel, glass guard plate
Hydraulic output 1 or 2 group 1 or 2 group 1 or 2 group 1 or 2 group
Adjustment mode, rear wheel Stepless adjustment Stepless adjustment Stepless adjustment Stepless adjustment
Dimensions, mass, drive
Drive type 4x4 4x4 4x4 4x4
Overall dimensions (LxWxH) (mm) 3727x1630x2375 3742x1640x2405 3910x1745x2545 3910x1745x2565
Wheelbase (mm) 1965 1970 2063 2127
Min. ground clearance (mm) 270 350 350 350
Min. operating mass (with safety stand) (Kg) 1990 2070 2326 2380
Tyre spec. front / rear 7.5-16 / 11.2-28 8.3-20 / 12.4-28 8.3-20 / 12.4-28 8.3-20 / 13.6-28
Wheel tread, front / rear 1250 / 1300, 1400, 1500, 1600 1285 / 1300, 1400, 1500, 1600 1250 / 1300, 1400, 1500, 1600 1250 / 1300, 1400, 1500, 1600
Steering Full hydraulic Full hydraulic Full hydraulic Full hydraulic
Brake Disk type, mechanical Disk type, mechanical Disk type, mechanical Disk type, mechanical

YTO 40hp to 60hp 4WD Wheeled Tractor

The YTO 404/454/504/554 wheeled tractor is equipped with wed disc brake exhibiting desirable braking performance and high reliability; Planetary gear final drive; double-action clutch; operable for glebe and paddy fields; engagement sleeve gear change; Combined draft-position control; big wheel tread and axle base; big kerb mass, good chassis stability; Optioned with safety ROPS.


Model: YTO 404/454/504/554 Wheeled Tractor
Engine rated power: 29.4kw/33.1kw/36.8kw/40.4kw
Engine brand: Xinchai/Xinchai/YTO/YTO
Engine model:C490BT-8/A495BT-5/YT4A2-22/YT4A2-22
Driving type: 4WD
YTO 40hp to 60hp 4WD Wheeled Tractor
