Model: YTO SG254/ME304/ME354 Wheeled Tractor
Engine rated power: 18.4kw/22.1kw/25.7kw
Engine model: KM385BT/ZN390T/SL3100ABT-2
Driving type: 4WD



YTO 25hp to 40hp 4WD Wheeled Tractor

 YTO spare parts
YTO Singapore

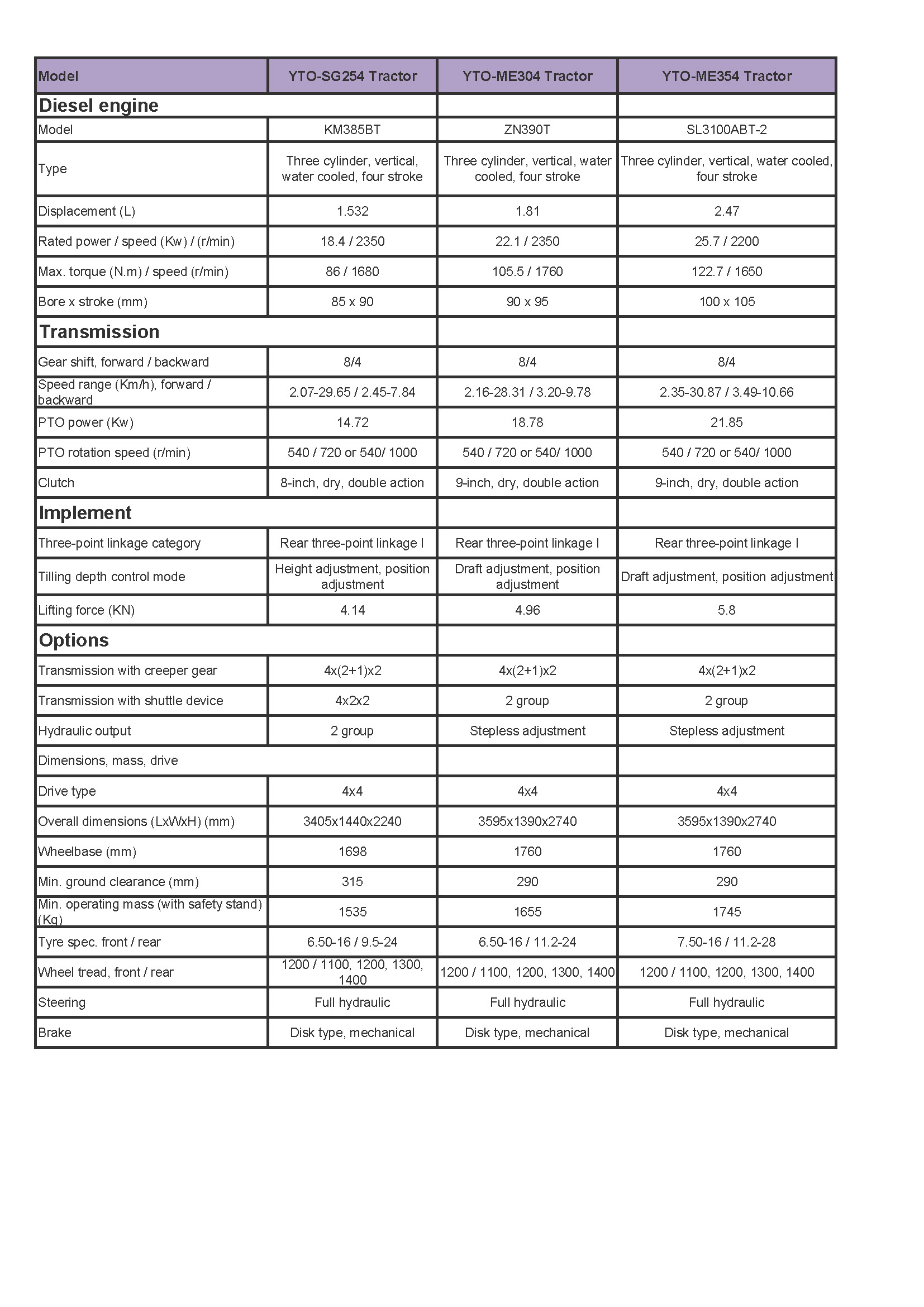

Model
YTO-SG254 Tractor YTO-ME304 Tractor YTO-ME354 Tractor
Diesel engine
Model KM385BT ZN390T SL3100ABT-2
Type Three cylinder, vertical, water cooled, four stroke Three cylinder, vertical, water cooled, four stroke Three cylinder, vertical, water cooled, four stroke
Displacement (L) 1.532 1.81 2.47
Rated power / speed (Kw) / (r/min) 18.4 / 2350 22.1 / 2350 25.7 / 2200
Max. torque (N.m) / speed (r/min) 86 / 1680 105.5 / 1760 122.7 / 1650
Bore x stroke (mm) 85 x 90 90 x 95 100 x 105
Transmission
Gear shift, forward / backward 8/4 8/4 8/4
Speed range (Km/h), forward / backward 2.07-29.65 / 2.45-7.84 2.16-28.31 / 3.20-9.78 2.35-30.87 / 3.49-10.66
PTO power (Kw) 14.72 18.78 21.85
PTO rotation speed (r/min) 540 / 720 or 540/ 1000 540 / 720 or 540/ 1000 540 / 720 or 540/ 1000
Clutch 8-inch, dry, double action 9-inch, dry, double action 9-inch, dry, double action
Implement
Three-point linkage category Rear three-point linkage I Rear three-point linkage I Rear three-point linkage I
Tilling depth control mode Height adjustment, position adjustment Draft adjustment, position adjustment Draft adjustment, position adjustment
Lifting force (KN) 4.14 4.96 5.8
Options
Transmission with creeper gear 4x(2+1)x2 4x(2+1)x2 4x(2+1)x2
Transmission with shuttle device 4x2x2 2 group 2 group
Hydraulic output 2 group Stepless adjustment Stepless adjustment
Dimensions, mass, drive
Drive type 4x4 4x4 4x4
Overall dimensions (LxWxH) (mm) 3405x1440x2240 3595x1390x2740 3595x1390x2740
Wheelbase (mm) 1698 1760 1760
Min. ground clearance (mm) 315 290 290
Min. operating mass (with safety stand) (Kg) 1535 1655 1745
Tyre spec. front / rear 6.50-16 / 9.5-24 6.50-16 / 11.2-24 7.50-16 / 11.2-28
Wheel tread, front / rear 1200 / 1100, 1200, 1300, 1400 1200 / 1100, 1200, 1300, 1400 1200 / 1100, 1200, 1300, 1400
Steering Full hydraulic Full hydraulic Full hydraulic
Brake Disk type, mechanical Disk type, mechanical Disk type, mechanical

YTO 25hp to 40hp 4WD Wheeled Tractor

1. It adopts the famous-brand three-cylinder diesel engine, which is performance of outstanding and low in specific fuel consumption and weak in noise and high economic benefit;
2. Safety ROPS and sun canopy are optional;
3. Equipped with independent operating ,double-action clutch, hydraulic steering system ensures flexible and convenient operation feature for the high quality farmland working;
4. Optioned with import combined instrument greatly enhance the reliability of the electrical system;
5. Transmission box adopts engagement sleeve gear change which is flexible and easy to operate;
6. Operation mechanism is erection style, accord with the man-machine engineering principal;
7. Can select creep gearshift or reverse shuttle, it is suitable for special working operations;
8. 540/720 r/min and 540/1000r/min double-speed PTO shaft, can supply large range of farm equipments;
9. Full closed mantle is streamline structure, machine appearance is elegant and pleasing to the eye.
