 YTO spare parts
YTO Singapore

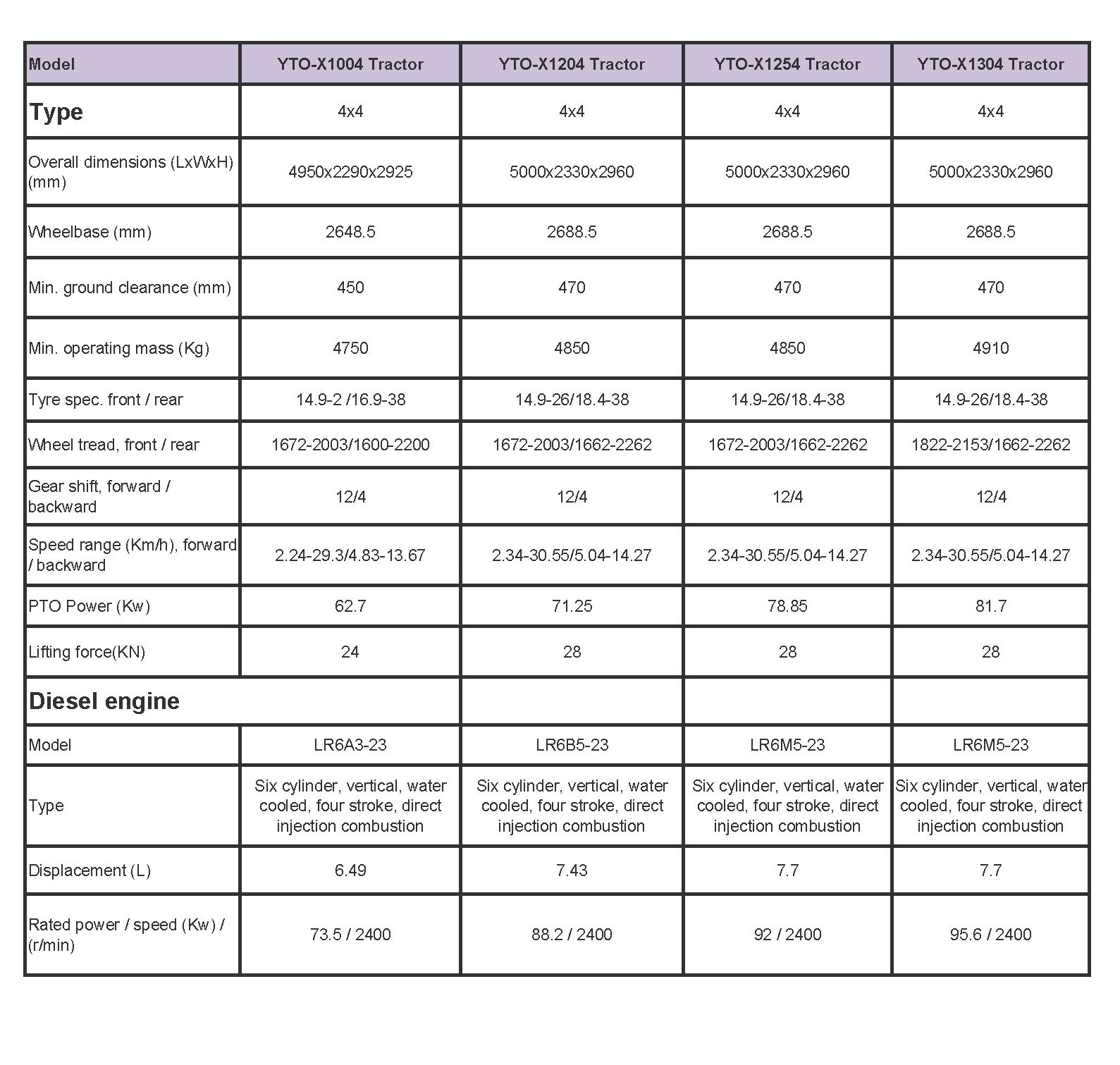

Model
YTO-X1004 Tractor YTO-X1204 Tractor YTO-X1254 Tractor YTO-X1304 Tractor
Type 4x4 4x4 4x4 4x4
Overall dimensions (LxWxH) (mm) 4950x2290x2925 5000x2330x2960 5000x2330x2960 5000x2330x2960
Wheelbase (mm) 2648.5 2688.5 2688.5 2688.5
Min. ground clearance (mm) 450 470 470 470
Min. operating mass (Kg) 4750 4850 4850 4910
Tyre spec. front / rear 14.9-2 /16.9-38 14.9-26/18.4-38 14.9-26/18.4-38 14.9-26/18.4-38
Wheel tread, front / rear 1672-2003/1600-2200 1672-2003/1662-2262 1672-2003/1662-2262 1822-2153/1662-2262
Gear shift, forward / backward 12/4 12/4 12/4 12/4
Speed range (Km/h), forward / backward 2.24-29.3/4.83-13.67 2.34-30.55/5.04-14.27 2.34-30.55/5.04-14.27 2.34-30.55/5.04-14.27
PTO Power (Kw) 62.7 71.25 78.85 81.7
Lifting force(KN) 24 28 28 28
Diesel engine
Model LR6A3-23 LR6B5-23 LR6M5-23 LR6M5-23
Type Six cylinder, vertical, water cooled, four stroke, direct injection combustion Six cylinder, vertical, water cooled, four stroke, direct injection combustion Six cylinder, vertical, water cooled, four stroke, direct injection combustion Six cylinder, vertical, water cooled, four stroke, direct injection combustion
Displacement (L) 6.49 7.43 7.7 7.7
Rated power / speed (Kw) / (r/min) 73.5 / 2400 88.2 / 2400 92 / 2400 95.6 / 2400

YTO 100hp to 130hp Wheeled Tractor

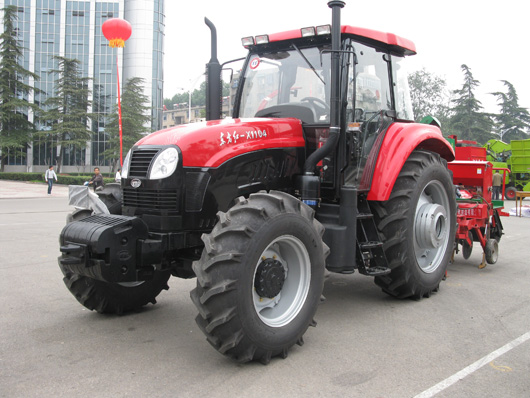

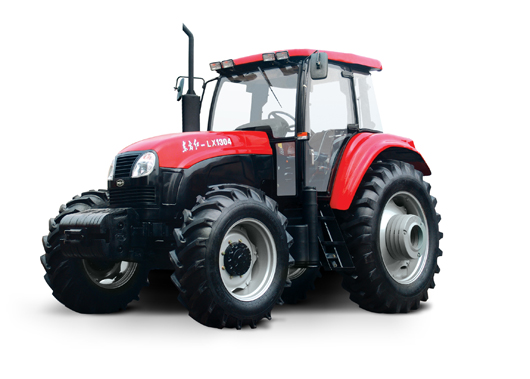

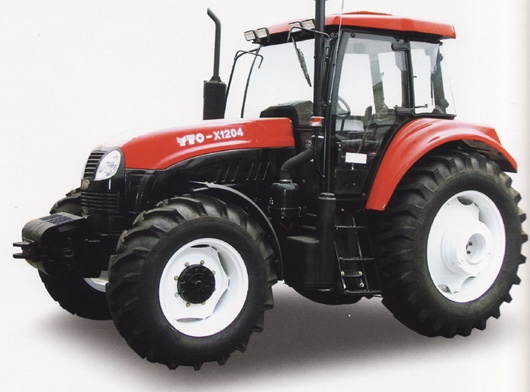

The YTO-X1004/X1204/X1254/X1304 wheeled tractor is developed on the basis of the Italian wheeled tractor chassis technology, adopting the British technology-based 6-cylinder turbocharged engine. The machine body has a streamline configuration. The tractor has a low fuel consumption and a desirable power economic. It has multiple gears and a wide speed range. Besides, it is flexible in steering and easy to operate.


Model: YTO X1004/X1204/X1254/X1304 Wheeled Tractor
Engine rated power: 73.5kw/88.2kw/92kw/95.6kw
Engine brand: YTO
Engine: LR6A3-23/LR6B5-23/LR6M5-23/LR6M5-23
Driving type: 4WD
YTO 100hp to 130hp Wheeled Tractor
